Getting Started#

Basic Concept#

Source code and configuration files are well suited for Git, but managing large build artifacts, binaries, and video files in the same way can increase repository size and affect operations such as Clone and Pull.

For example, installation files, container images, model files, or media outputs generated in a development environment may need to be delivered to multiple servers and test environments.

Instead of managing these files in Git together with source code, responsibilities can be separated so that Git manages code changes while large files are delivered through a separate file transfer flow.

Developer
    │
    ├── Source Code ──────────────▶ Git Repository
    │
    └── Build Artifacts
            │
            ▼
        Transfer Flow
            │
     ┌──────┼────────┐
     ▼      ▼        ▼
   Test   Server   Storage

large-files-outside-git_1

This separates code changes from large-file delivery while creating a separate automated flow covering build artifact creation → file detection → transfer to target environment → result verification.

File Classification#

Files for automatic delivery can focus on large artifacts not managed by Git rather than all project files.

For example, source code from a build job can be managed in a Git Repository while only result files generated after the build completes are selected for transfer.

project/
│
├── src/
│   └── application source
│
├── config/
│   └── application settings
│
└── build/
    ├── application.zip
    ├── application.bin
    └── media/
        ├── video.mp4
        └── assets.tar

File Type	Management or Delivery Method
Source code	Manage change history with Git
Configuration files	Manage with Git or environment-specific configuration
Build artifacts	Deliver to a specified server or storage
Binaries	Automatically transfer to deployment environments
Large media	Deliver to separate storage or processing environments
Temporary files	Exclude from transfer

Separating management methods by file type keeps files that require actual change management in the Git Repository while delivering large files to required environments through separate transfer paths.

Delivery Flow#

Build artifacts can be delivered as soon as they are generated or transferred to the next stage after build and validation operations complete.

For example, after a build completes in a CI environment, result files can be delivered to a test server and then, after validation completes, to a production deployment environment or separate storage.

Code Change
    │
    ▼
Build
    │
    ▼
Artifacts Ready
    │
    ├── Build Failed ──▶ Review
    │
    ▼
Transfer
    │
    ▼
Test Environment
    │
    ▼
Validation
    │
    ├── Approved ─────▶ Next Distribution
    │
    └── Check Needed ─▶ Review Result

Here, file transfer can be configured not simply as copying a specific folder, but as a process that connects required artifacts to the next environment based on the previous operation's result and file readiness.

IT Engineer#

Source Connection#

First, connect the system where build artifacts or binary files are generated as the Source.

The Source can be a development server, build server, CI environment, or storage where large files are prepared.

By specifying where files to transfer are generated, you can configure the scope of files for automatic delivery based on that path.

Build Server
     │
     ▼
/var/build/output/
     │
     ├── app-v2.4.0.zip
     ├── installer.exe
     └── media-package.tar
              │
              ▼
         Transfer Source

large-files-outside-git_2

The following items can be defined in the Source configuration.

Configuration Item	Setting
Connected system	Build or file-generation environment
Source Path	File path where artifacts are generated
File conditions	Select by extension and name
Exclusion conditions	Exclude temporary files and unnecessary results
File readiness	Criteria for starting transfer after generation completes

For example, you can transfer only .zip, .tar, and .bin files from the build/output path while excluding temporary files generated during the build.

Execution Conditions#

Large result files can be configured for transfer after the build job actually completes rather than immediately when the file is created.

For example, a transfer can run after a build-completion event, or the next file transfer operation can run based on a successful CI job result.

Build Started
      │
      ▼
Building Files
      │
      ▼
Build Completed?
   ┌──┴──┐
   │     │
  No    Yes
   │     │
   ▼     ▼
 Review  File Ready
              │
              ▼
          Transfer Run

Execution Criteria	Usage
File Ready	Transfer when a new result file is ready
After Transfer	Run after the previous file-processing operation completes
Build Complete	Deliver based on build completion result
Date/Time	Deliver result files at a specified time
Manual Run	Run manually after checking result files
URL Request	Run transfer in response to an external request

large-files-outside-git_3

This reduces cases where files still being generated or artifacts from incomplete builds are delivered to target environments.

Target Branching#

When one build artifact is needed in multiple environments, the transfer path can branch from one Source to multiple Targets.

For example, a generated installation package can be delivered to a test server while also being stored in long-term storage.

                Build Artifacts
                       │
                       ▼
                  Transfer Flow
                       │
          ┌────────────┼────────────┐
          ▼            ▼            ▼
       QA Server   Release Server  Archive
          │            │            │
          ▼            ▼            ▼
       Testing     Deployment      Storage

large-files-outside-git_4

Target environments can be divided according to how files are used.

Target	Usage
Test server	Validate build results
Deployment server	Prepare installation or production deployment
File storage	Long-term artifact storage
Media server	Process large media files
Remote system	Deliver files to branch or external environments

Even when one artifact is needed in multiple locations, delivery paths for each Target can be configured in one Flow instead of copying files separately.

Version Management#

Build artifacts can be managed by version or build number instead of repeatedly overwriting the same file name.

For example, each generated file name can include a version, and the same structure can be maintained on the Target.

Source
/build/releases/
├── app-v2.3.0.zip
├── app-v2.4.0.zip
└── app-v2.5.0.zip
          │
          ▼
Target
/releases/
├── v2.3.0/
├── v2.4.0/
└── v2.5.0/

Separating the delivery scope by file path or name also allows only artifacts from a specific version to be delivered.

Management Criteria	Usage
Version number	Deliver artifacts for a specified version
Build number	Distinguish results from a specific build
Creation date	Select the latest result files
Project path	Separate artifacts by project
File type	Separate installation files from media files
This allows the delivery scope of large files used for actual deployment to be managed independently of Git Commit or Repository.

Follow-up Chaining#

After files are delivered to the target environment, the next operation that uses the artifacts can also be connected.

For example, automatic validation can start when build artifacts arrive on the test server, and the next deployment operation can run according to the validation result.

Build Complete
      │
      ▼
Artifact Transfer
      │
      ▼
Target Ready
      │
      ├──────────────┐
      ▼              ▼
   Validation      Archive
      │
      ▼
  Result Review
      │
 ┌────┴─────┐
 ▼          ▼
Success    Review
 │
 ▼
Next Deployment

large-files-outside-git_5

Connecting follow-up operations reduces the need for a separate operator to check delivered files and start the next operation.

For example, the flow can be configured as follows.

Transfer Result	Follow-up Operation
Transfer completed	Run automatic validation
Validation completed	Deliver to the next deployment environment
Storage completed	Record result history
Partial failure	Check the affected Target
Additional review required	Review Run details

Result Verification#

When a file delivery operation runs, check overall progress and processing results by Source and Target in Runs.

Even when one build artifact is delivered to multiple target environments, execution results can be reviewed separately by Target.

large-files-outside-git_6

The following items can be checked in the execution results.

Item	Details
Source	System and path where build artifacts were generated
Target	Server or storage where files were delivered
Total Files	Number of processed result files
Total Size	Total size of delivered files
Progress	Current file transfer progress
Status	Execution completion and failure status
Started	Transfer start time
Completed	Transfer completion time

Selecting a specific Run shows per-file processing results and which artifacts were successfully applied to each target environment.

This allows large-file delivery status to be managed in one execution flow instead of checking server-specific scripts or individual logs separately.

Failure Handling#

If files are not delivered successfully to a specific target environment, use the Run details to identify where the issue occurred and review file-processing status.

For example, if the target server connection is interrupted or the storage path cannot be accessed, check that Target's connection status, path, and access permissions.

Transfer Run
      │
      ▼
Result Review
      │
 ┌────┼─────────────┐
 ▼    ▼             ▼
QA ✓  Release ✓   Archive !
                       │
                       ▼
                  View Details
                       │
             ┌─────────┼─────────┐
             ▼         ▼         ▼
         Connection   Path   Permission
             │         │         │
             └─────────┼─────────┘
                       ▼
                     Adjust
                       │
                       ▼
                      Retry
                       │
                       ▼
                   New Run

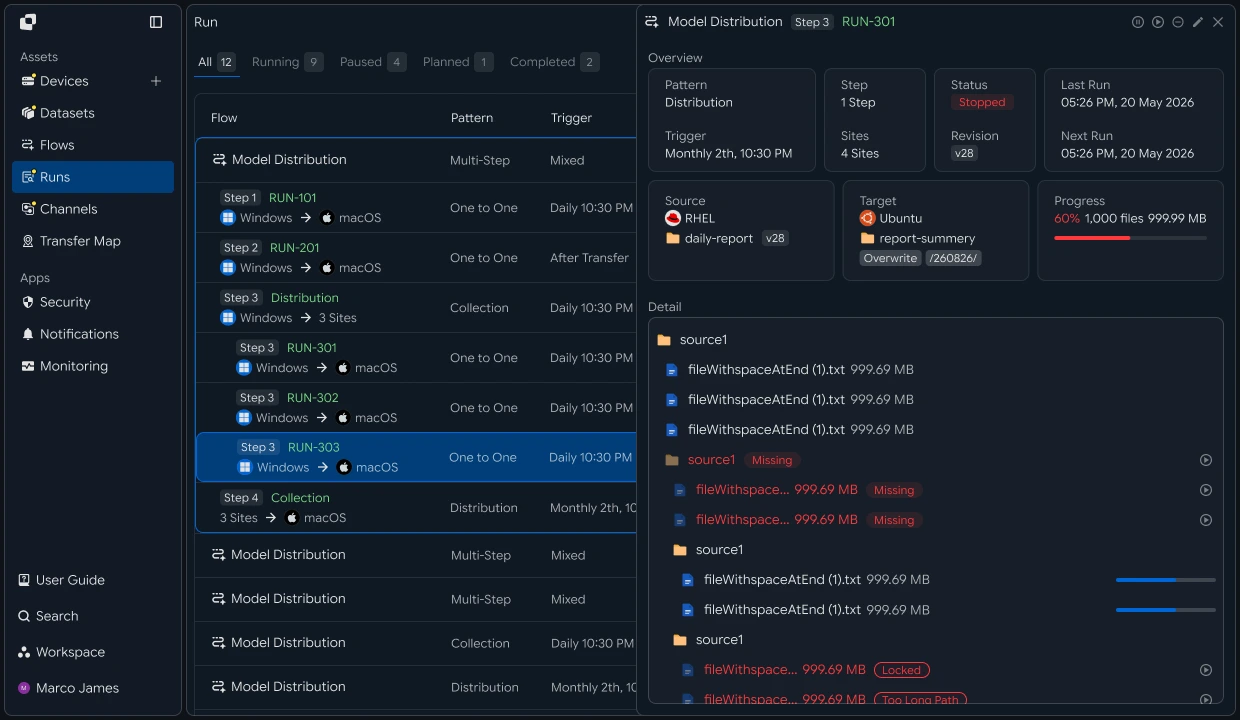

large-files-outside-git_7

After resolving the issue, rerun the transfer for the required files and target environment instead of repeating the entire build process.

After rerunning, use the new Run to verify that large build artifacts and binary files were successfully applied to the specified location.

This process creates a large-file delivery flow covering prepare build results → select transfer files → set execution conditions → branch target environments → deliver by version → connect follow-up operations → verify results → handle failed Targets.

By using Git to manage source code and change history while automatically delivering large build artifacts, binaries, and media files through a separate Flow, you can separate code management from large-file distribution while keeping the overall development · deployment flow connected.

Developer#

Deliver large artifacts outside Git to versioned paths and record references

Register the build server and storage target as Devices, transfer artifacts to a versioned path, and check the terminal status. Prepare the following before starting.

Prerequisite	Details
INNORIX authentication	`INNORIX_ACCESS_TOKEN` (`Authorization: Bearer`)
Source Device	Build server device ID and artifact path (e.g. `/out/2.14.0`)
Target Device	Shared storage · server device ID and storage root (e.g. `/artifacts`)
Runtime	Python 3 + `requests` · Java 17+ · Node.js 18+ · .NET 8+

Python and Node.js reuse the minimal api() helper for direct REST calls and status constants (STATUS_COMPLETE · TERMINAL) from the API Call Recipe. Java and C# use the bundled InnorixClient (including constants) and Json helper (J for C#). Replace Device identifiers and paths with actual values.

Deliver Artifacts to a Versioned Path#

Transfer artifacts to the storage-root/version path and create a path for consumers to reference from the returned transfer information. Record the returned reference information (device · path · version) in Git metadata or a deployment manifest during the CI stage.

import time


def push_artifact(source, source_path, target, store_root, version):
    target_path = f"{store_root.rstrip('/')}/{version}"   # version path
    transfer = api("POST", "/api/transfers/manual", {
        "sourceDevice": source,
        "targetDevice": target,
        "targetPath": target_path,
        "sourcePaths": [source_path],
        "sendAllFolder": True,
        "checkIntegrity": True,
        "transferOptions": {"target-action": "overwrite"},
    })
    detail = wait_transfer(transfer["monitorId"])
    ok = detail.get("status") == STATUS_COMPLETE
    # reference to record in Git (device + path + version)
    return {"ok": ok, "device": target, "path": target_path, "version": version}


def wait_transfer(monitor_id, timeout=14400, interval=5):
    deadline = time.time() + timeout
    while time.time() < deadline:
        detail = api("GET", f"/api/transfers/{monitor_id}") or {}
        if detail.get("status") in TERMINAL:
            return detail
        time.sleep(interval)
    raise TimeoutError(monitor_id)


ref = push_artifact("build-src", "/out/2.14.0", "artifact-store", "/artifacts", "2.14.0")
print("delivered" if ref["ok"] else "needs check", "->", ref["path"])

static Map<String, Object> pushArtifact(InnorixClient client, String source, String sourcePath,
        String target, String storeRoot, String version) throws InterruptedException {
    String targetPath = storeRoot.replaceAll("/+
quot;, "") + "/" + version;
    Map<String, Object> transfer = client.apiObj("POST", "/api/transfers/manual", Json.newObj(
            "sourceDevice", source,
            "targetDevice", target,
            "targetPath", targetPath,
            "sourcePaths", List.of(sourcePath),
            "sendAllFolder", true,
            "checkIntegrity", true,
            "transferOptions", Json.newObj("target-action", "overwrite")), null);
    Map<String, Object> detail = waitTransfer(client, Json.str(transfer, "monitorId"), 14400, 5);
    Integer status = Json.intOrNull(detail, "status");
    return Json.newObj(
            "ok", status != null && status == InnorixClient.STATUS_COMPLETE,
            "device", target, "path", targetPath, "version", version);
}

static Map<String, Object> waitTransfer(InnorixClient client, String monitorId,
        long timeoutSec, long intervalSec) throws InterruptedException {
    long deadline = System.currentTimeMillis() + timeoutSec * 1000;
    while (System.currentTimeMillis() < deadline) {
        Map<String, Object> detail = client.apiObj("GET", "/api/transfers/" + monitorId, null, null);
        Integer status = Json.intOrNull(detail, "status");
        if (status != null && InnorixClient.TERMINAL.contains(status))
            return detail;
        Thread.sleep(intervalSec * 1000);
    }
    throw new RuntimeException("timeout: " + monitorId);
}

async function pushArtifact(source, sourcePath, target, storeRoot, version) {
  const targetPath = `${storeRoot.replace(/\/+$/, "")}/${version}`;   // version path
  const transfer = await api("POST", "/api/transfers/manual", {
    sourceDevice: source,
    targetDevice: target,
    targetPath,
    sourcePaths: [sourcePath],
    sendAllFolder: true,
    checkIntegrity: true,
    transferOptions: { "target-action": "overwrite" },
  });
  const detail = await waitTransfer(transfer.monitorId);
  const ok = detail.status === STATUS_COMPLETE;
  return { ok, device: target, path: targetPath, version };
}

async function waitTransfer(monitorId, { timeout = 14400, interval = 5 } = {}) {
  const deadline = Date.now() + timeout * 1000;
  while (Date.now() < deadline) {
    const detail = (await api("GET", `/api/transfers/${monitorId}`)) || {};
    if (TERMINAL.has(detail.status)) return detail;
    await new Promise((r) => setTimeout(r, interval * 1000));
  }
  throw new Error(`timeout: ${monitorId}`);
}

const ref = await pushArtifact("build-src", "/out/2.14.0", "artifact-store", "/artifacts", "2.14.0");
console.log(ref.ok ? "delivered" : "needs check", "->", ref.path);

static async Task<JsonObject> PushArtifactAsync(InnorixClient client, string source, string sourcePath,
    string target, string storeRoot, string version)
{
    string targetPath =
quot;{storeRoot.TrimEnd('/')}/{version}";
    var transfer = await client.ApiObjAsync("POST", "/api/transfers/manual", new JsonObject
    {
        ["sourceDevice"] = source,
        ["targetDevice"] = target,
        ["targetPath"] = targetPath,
        ["sourcePaths"] = J.ArrOfStrings(new[] { sourcePath }),
        ["sendAllFolder"] = true,
        ["checkIntegrity"] = true,
        ["transferOptions"] = new JsonObject { ["target-action"] = "overwrite" },
    });
    JsonObject detail = await WaitTransferAsync(client, J.Str(transfer, "monitorId"));
    int? status = J.IntOrNull(detail, "status");
    return new JsonObject
    {
        ["ok"] = status != null && status == InnorixClient.StatusComplete,
        ["device"] = target, ["path"] = targetPath, ["version"] = version,
    };
}

static async Task<JsonObject> WaitTransferAsync(InnorixClient client, string monitorId,
    int timeoutSec = 14400, int intervalSec = 5)
{
    DateTime deadline = DateTime.UtcNow.AddSeconds(timeoutSec);
    while (DateTime.UtcNow < deadline)
    {
        JsonObject detail = await client.ApiObjAsync("GET",
quot;/api/transfers/{monitorId}", null, null);
        int? status = J.IntOrNull(detail, "status");
        if (status != null && InnorixClient.Terminal.Contains(status.Value))
            return detail;
        await Task.Delay(intervalSec * 1000);
    }
    throw new TimeoutException(monitorId);
}

Version path rule Delivering artifacts to the storage-root/version path identifies the version through the path. Record only this reference (device · path · version) in Git and keep the actual files outside the repository.

Integrity verification If the Source · Target Device combination supports integrity verification, checkIntegrity: true can verify that source and destination files match. Do not use it for unsupported combinations such as object-storage-to-object-storage transfers (see the Integrity Verification Recipe).

Consumers can use the recorded device ID and version path to access the artifact or receive it through a separate transfer. If failures occur, use retry_failed from the Pause and Resume Recipe to retransmit only the failed items.

Implementation Result#

With this recipe, large files outside Git can be delivered using the following flow.

Build artifacts (build-src) /out/2.14.0
   ↓  Transfer to versioned path (checkIntegrity)
Shared storage (artifact-store) /artifacts/2.14.0
   ↓  Record only the reference in Git
Consumer receives from the same path

Deliver large artifacts outside the Git repository through versioned paths and leave only references in commits, keeping the repository lightweight while verifying integrity.
