Overview#
You can configure Clam AntiVirus integration to scan files during transfer and block or detect threats.
After completing the integration, files are scanned at the configured scan timing (Scan timing), and when a threat is detected, the transfer is blocked or an alert is generated according to the specified handling method (On detection). The files to scan are specified by the scan scope (Scan scope).
The entire process consists of two steps: ① Verify Credentials → ② Configure the Integration in the Product.
Prerequisites#
Before you begin, check the following.
| Item | Description |
|---|---|
| ClamAV daemon | The clamd daemon used for file scanning must be running. |
| Connection information | The Host and Port of clamd are required. (Default port: 3310) |
| Network | Network access to the clamd Host and Port (default: 3310) must be available from the environment where the product is installed. |
Verify Credentials#
To scan files with ClamAV, you need the Host and Port of the clamd daemon.

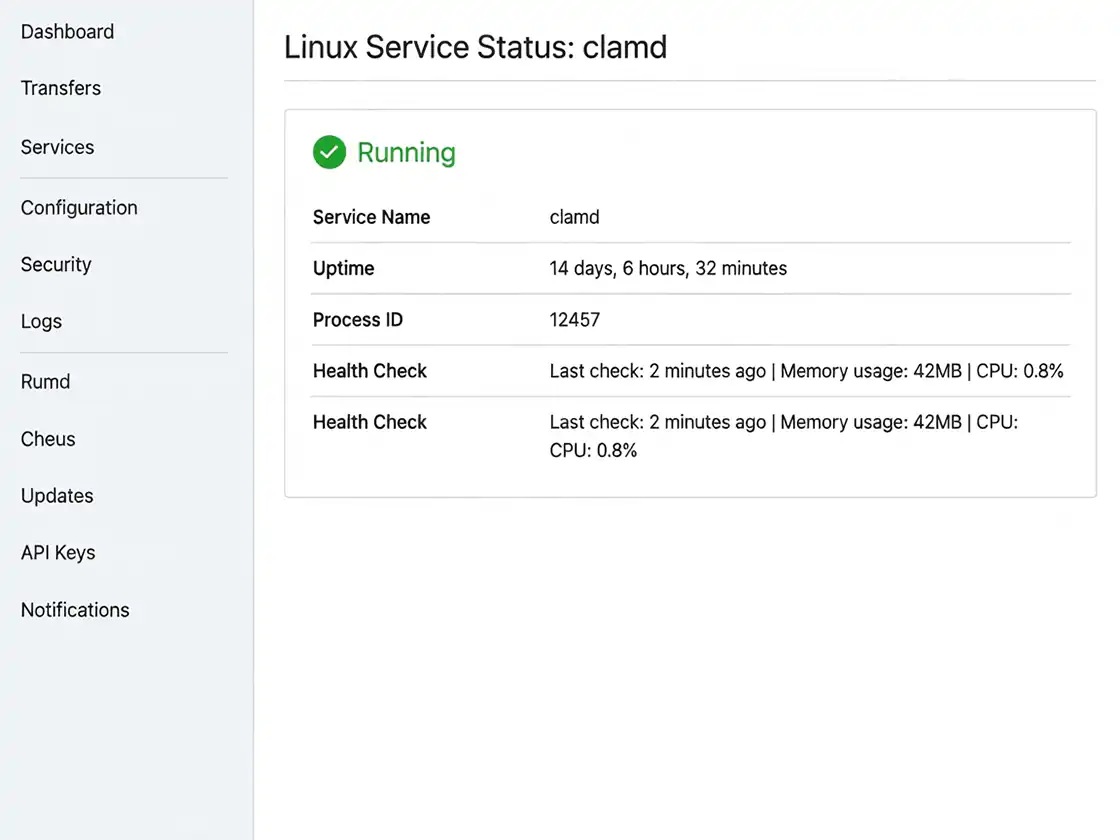

Step 1. Check the clamd Daemon#
Check whether the clamd daemon used for file scanning is running.

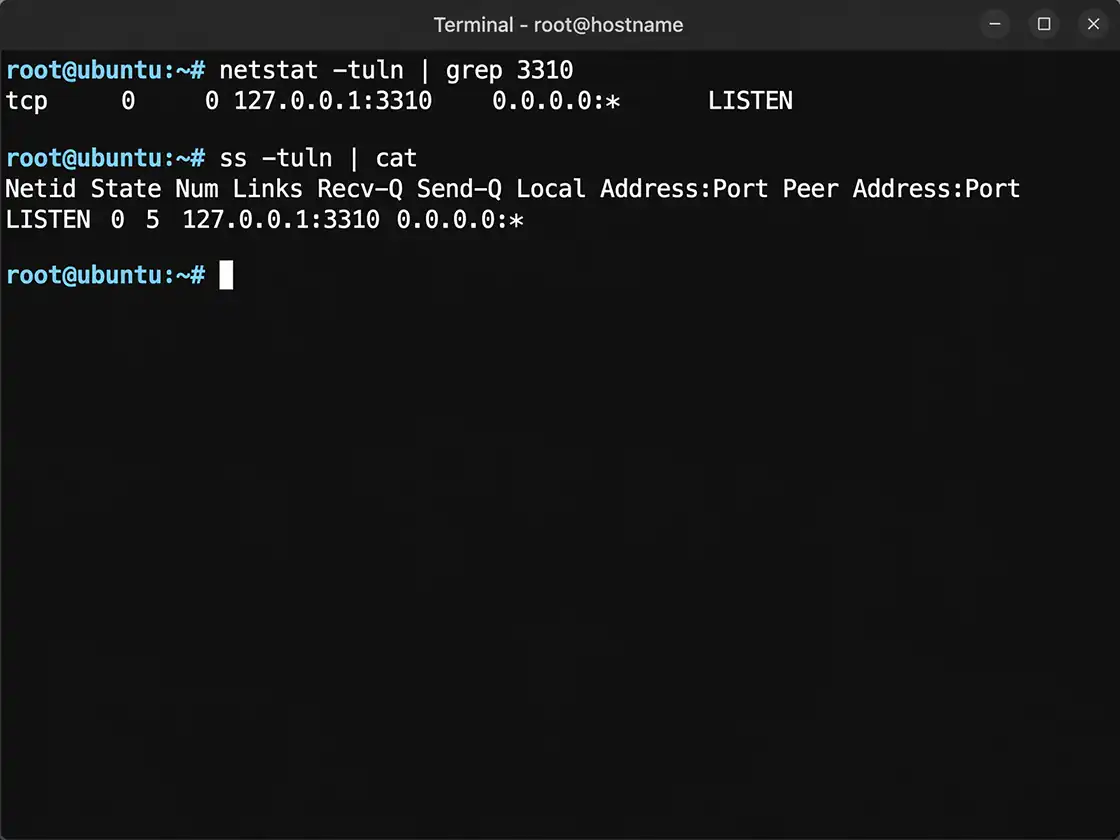

Step 2. Check Host and Port#
Check the Host and Port on which clamd is listening. (Default: 127.0.0.1, port 3310)
Checklist#
- ✔ The clamd daemon is running.
- ✔ The Host and Port have been confirmed.
Clam AntiVirus Integration Settings#
Enter the confirmed credentials and specify the scanning options.
When you open the Security settings window, the following screen is displayed.
Step 1. Enter the Host#
Enter the clamd address in the Host field. (Example: 127.0.0.1)
Step 2. Enter the Port#
Enter the clamd port in the Port field. (Default: 3310)
Step 3. Select Scan timing#
Select when to scan files under Scan timing.
| Option | Description |
|---|---|
| Before transfer at source | Scans files at the source before transfer. |
| After transfer at target | Scans files at the target after transfer. |
| Bothway | Scans files at both the source before transfer and the target after transfer. |
Step 4. Select On detection#
Select how to handle a detected threat under On detection.
| Option | Description |
|---|---|
| Block transfer | Blocks the transfer when a threat is detected. |
| Alert only | Allows the transfer to continue but generates only an alert. |
| Admin confirm | Processes the item after administrator confirmation. |
Step 5. Select Scan scope#
Select the target scope to scan under Scan scope.
| Option | Description |
|---|---|
| All files | Scans all transferred files. |
| Executable files only | Scans executable files only. |
| Custom exceptions | Scans according to user-defined exception rules. |
Step 6. Save the Settings#
After completing the input, click Add to save the integration.
Checklist#
- ✔ The Host and Port have been entered.
- ✔ Scan timing, On detection, and Scan scope have been selected.
Verify the Integration#
Verify that the settings are working correctly.
Step 1. Transfer a Test File#
Transfer an actual file to verify that scanning is performed. You can verify scanning behavior with a safe test file, such as the standard antivirus test file (EICAR).
Step 2. Check the Processing Result#
Verify that the configured handling method (On detection) works as expected. (For example, Block transfer blocks the transfer, while Alert only generates an alert.)
Checklist#
- ✔ File scanning has been performed.
- ✔ It operates according to the configured handling method.
Setup Complete#
Once the settings are saved, the integration is applied. Files transferred afterward are scanned at the specified timing and scope, and detected threats are handled according to the specified method.
Troubleshooting#
If scanning does not work correctly, check the following items.
| Issue | Checklist |
|---|---|
| Scanning is not performed | Check whether the Host and Port are correct and whether the clamd daemon is running. |
| Connection fails | Check whether clamd is listening on the specified Host and Port and whether it is blocked by a firewall. |
| The transfer is not blocked when a threat is detected | Check whether On detection is set to Block transfer. |
| A specific file is not scanned | Check the Scan scope setting (All files / Executable files only / Custom exceptions). |
| Transfer slows down | If Scan timing is Bothway, bidirectional scanning may take more time (adjust if necessary). |
| Integration fails in a closed network | Check whether network access to the clamd Host and Port (default: 3310) is allowed. |
