Transfer Files from Azure Blob to an On-Premises Server

Getting Started#

Basic Concept#

Transfer Azure Blob files directly to an on-premises server work folder

Files created or stored in Azure may need to be used by on-premises systems.

For example, processing results generated in the cloud can be brought to an internal business server, or backup files stored in Azure Blob can be delivered to an on-premises archive server.

Traditionally, files may be moved through an operator or an intermediate environment as follows.

Azure Blob Storage
        │
        │ Download
        ▼
   Local PC / Server
        │
        │ Copy
        ▼
 On-Premises Server

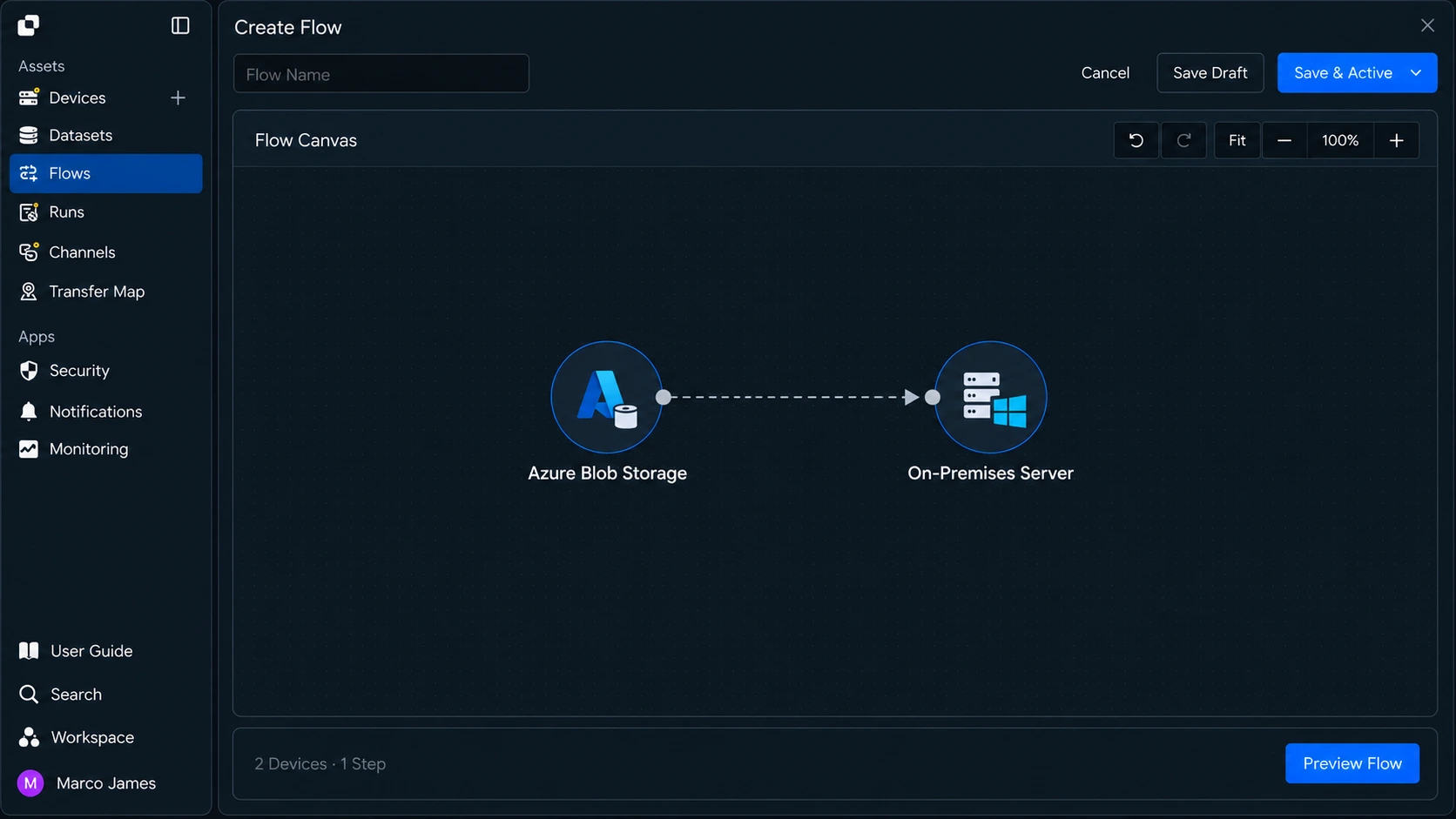

By configuring direct transfer, Azure Blob and an on-premises server can be connected in a single file transfer flow.

┌─────────────────────┐
│  Azure Blob Storage │
│                     │
│   Source Container  │
└──────────┬──────────┘
           │
           │ File Transfer
           ▼
┌─────────────────────┐
│ On-Premises Server  │
│                     │
│  Windows / Linux    │
└─────────────────────┘

This connects check Azure Blob files → select transfer target → save to on-premises server → verify results as a single operation.

Target Folder#

Connect Azure file paths to the server's actual work folder

A single Azure Blob Container may store files used by multiple business processes and services.

Instead of downloading the entire Container to the server, you can select and deliver only the file paths required in the actual on-premises environment.

For example, assume Azure Blob has the following file structure.

processing-container
│
├── completed/
│   ├── report/
│   │   ├── report-01.csv
│   │   └── report-02.csv
│   │
│   └── media/
│
├── backup/
│
└── temporary/

Only the completed report files can be delivered to the business folder on the on-premises server.

Azure Blob Storage                    On-Premises Server

processing-container                  D:\data\incoming\
│                                     │
├── completed/                        ├── report-01.csv
│   └── report/       ───────────▶    └── report-02.csv
│       Selected
│
├── backup/        Not Included
└── temporary/     Not Included

When using a Linux server, a designated path such as /data/incoming/ can also be configured as the Target.

The transfer path can be configured to match the server's actual business structure.

This allows you to directly connect files stored in Azure with the server folder where actual on-premises work is performed.

Transfer Timing#

Run when needed or automatically deliver based on file creation and schedules

Transferring Azure Blob files to an on-premises server does not need to be limited to a one-time download.

Files can be delivered automatically after they are created in Azure, or required files can be brought to the server at a scheduled time before on-premises work begins.

For example, it can be used as follows.

For example, if result files processed overnight in Azure are delivered to an on-premises server every morning, the flow can be configured as follows.

Azure Processing Complete
        │
        ▼
Check Result Files
        │
        ▼
Check Transfer Conditions
        │
        ▼
Deliver to On-Premises Server
        │
        ▼
Apply to Work Folder

After the files are saved on the server, a batch job or analysis program that uses those files can also be configured to run automatically.

IT Engineer#

Environment Connection#

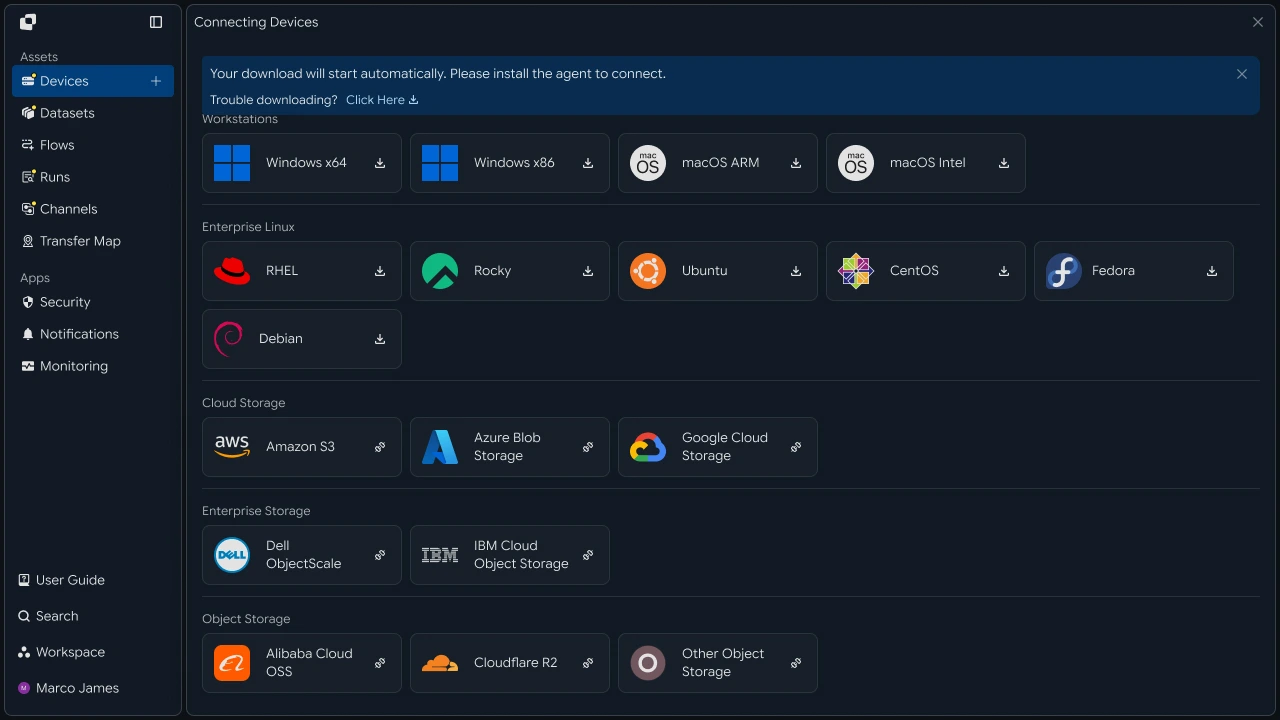

Register Azure Blob Storage and the on-premises server as transfer environments

First, connect the Azure Blob Storage from which files will be retrieved and the on-premises server where the files will be stored.

Because the Source and Target are different environments, file access and storage scopes can be managed separately.

Azure Blob must be able to read the Container and files to transfer, while the on-premises server must be able to save files to the designated folder.

Transfer Environment

Azure Blob Storage
└── Source Container
    └── Read Files

        │
        ▼

Transfer Flow

        │
        ▼

Windows / Linux Server
└── Target Folder
    └── Write Files

Check the following items before configuring the transfer.

Connecting each environment independently separates the Azure Storage access scope from the on-premises server's file storage scope while connecting them through a single transfer operation.

Path Configuration#

Map Container file locations to the server's business folder

After preparing the connected environments, configure where files will be retrieved from Azure Blob and where they will be stored on the on-premises server.

For example, the following Azure Blob path can be specified as the Source.

processing-container/completed/report/

On a Windows server, the Target folder can be specified as follows.

D:\data\incoming\report\

On a Linux server, it can be configured as follows.

/data/incoming/report/

The complete transfer structure is configured as follows.

Source

Azure Blob Storage
processing-container
└── completed/
    └── report/
        ├── report-01.csv
        ├── report-02.csv
        └── report-03.csv

                │
                │ Transfer
                ▼

Target

Windows / Linux Server
└── Target Folder
    ├── report-01.csv
    ├── report-02.csv
    └── report-03.csv

Depending on the business requirement, files from one Azure Container can be distributed to multiple servers, or files from multiple Azure paths can be collected on one central server.

For example, delivering files to different internal servers based on file type enables the following configuration.

                    ┌──▶ Windows Server
                    │     D:\report\
Azure Blob ── Flow ─┼──▶ Linux Server
                    │     /data/media/
                    │
                    └──▶ Archive Server
                          /backup/

In this way, a single Azure Blob file storage environment can serve as the starting point for delivering files to multiple on-premises environments based on the internal business structure.

File Conditions#

Select only the files required by the server and deliver them to the specified location

Azure Blob may contain files being processed, completed files, backup files, and other data together.

Instead of delivering every Blob to the server, you can select only the files required for actual work based on file name, extension, or path.

For example, it can be configured as follows.

This allows you to selectively deliver only the files actually required in the on-premises environment instead of downloading all files from Azure Blob.

Follow-up Processing#

Automatically connect the next operation after files are saved in the server folder

After Azure Blob files are saved on the on-premises server, the next operation that uses those files can be connected.

For example, when report files are saved on a Windows server, an internal program can process the data, or when media files arrive in a Linux server work folder, a conversion job can start.

Azure Blob
     │
     ▼
File Transfer
     │
     ▼
On-Premises Folder
     │
     ├──────────────▶ Application
     │
     ├──────────────▶ Next Flow
     │
     └──────────────▶ Completion Notice

Follow-up operations can run based on confirmation that the files were successfully applied to the Target.

This connects cloud file delivery → apply to server folder → internal processing → verify results as a single business workflow.

Verify Execution#

Verify the cloud source files and server storage results together

When the transfer runs, you can check the overall processing status and execution results in Runs.

Selecting a specific Run shows the Azure Blob Source, on-premises server Target, number of transferred files, total size, and progress status.

The following information can be checked for each Run.

When the transfer completes, you can verify the overall Run status and confirm that the files were successfully saved in the designated folder on the actual Target server.

This allows you to manage which Azure files were delivered to which on-premises server and the final storage results using a single execution record.

Troubleshooting#

Identify the cause by separating the Azure Source from the on-premises Target

If an issue requiring additional investigation occurs during transfer, first determine whether it occurred in Azure Blob or on the on-premises server.

If files cannot be read from Azure Blob, check the Storage connection status, Container, and file path. If files cannot be saved to the server, check the Target device connection, target folder, and storage permissions.

                 Transfer Failed
                        │
           ┌────────────┴────────────┐
           │                         │
           ▼                         ▼
      Check Azure                 Check Server
           │                         │
    Container connection               Device connection status
    Source file path             Target folder
    File read permission               File write permission
           │                         │
           └────────────┬────────────┘
                        ▼
                    Adjust Environment
                        │
                        ▼
                      Retry
                        │
                        ▼
                 Verify Server Storage Result

After identifying the issue, adjust the required connection, path, or access scope and run the operation again.

After rerunning, use the new Run to verify that Azure Blob files were successfully applied to the designated work folder on the on-premises Windows or Linux server.

With this recipe, you can configure connect Azure Blob → select Source files and paths → configure Windows or Linux server Target → set file conditions and execution timing → transfer directly from cloud to on-premises → connect follow-up operations after server delivery → check Run results → verify storage results as a single flow.

This allows files stored in the cloud to be delivered directly to the on-premises business environment without an intermediate PC, creating a hybrid file transfer environment that continues through file use and follow-up processing in the server's actual work folder.

Developer#

Transfer Azure Blob files to an on-premises server and verify the results

Register the source (Azure Blob) and target (server) as Devices, specify the prefix and server path, create the transfer, and check its terminal status. Prepare the following before starting.

Python and Node.js reuse the minimal api() helper for direct REST calls and status constants (STATUS_COMPLETE and TERMINAL) from the API Call Recipe. Java and C# use the bundled InnorixClient (including constants) and Json helper (J for C#). Replace the device identifiers (azure-src and onprem-01) and paths with actual values.

Create Azure Blob → Server Transfer#

Use the Azure Blob prefix as the folder root (sourcePaths + sendAllFolder) and specify the server's absolute path as targetPath. After creating the transfer, use monitorId to check its terminal status.

import time


def transfer_to_server(source, target, prefixes, target_path, action="overwrite"):
    transfer = api("POST", "/api/transfers/manual", {
        "sourceDevice": source,
        "targetDevice": target,
        "targetPath": target_path,
        "sourcePaths": prefixes,
        "sendAllFolder": True,
        "transferOptions": {"target-action": action},
    })
    return transfer["monitorId"]


def wait_transfer(monitor_id, timeout=14400, interval=5):
    deadline = time.time() + timeout
    while time.time() < deadline:
        detail = api("GET", f"/api/transfers/{monitor_id}") or {}
        if detail.get("status") in TERMINAL:
            return detail
        time.sleep(interval)
    raise TimeoutError(monitor_id)


monitor_id = transfer_to_server("azure-src", "onprem-01", ["export/2026/09"], "/data/incoming")
detail = wait_transfer(monitor_id)
print("completed:", detail.get("status") == STATUS_COMPLETE)

static String transferToServer(InnorixClient client, String source, String target,
        List<String> prefixes, String targetPath, String action) {
    Map<String, Object> transfer = client.apiObj("POST", "/api/transfers/manual", Json.newObj(
            "sourceDevice", source,
            "targetDevice", target,
            "targetPath", targetPath,
            "sourcePaths", prefixes,
            "sendAllFolder", true,
            "transferOptions", Json.newObj("target-action", action)), null);
    return Json.str(transfer, "monitorId");
}

static Map<String, Object> waitTransfer(InnorixClient client, String monitorId,
        long timeoutSec, long intervalSec) throws InterruptedException {
    long deadline = System.currentTimeMillis() + timeoutSec * 1000;
    while (System.currentTimeMillis() < deadline) {
        Map<String, Object> detail = client.apiObj("GET", "/api/transfers/" + monitorId, null, null);
        Integer status = Json.intOrNull(detail, "status");
        if (status != null && InnorixClient.TERMINAL.contains(status))
            return detail;
        Thread.sleep(intervalSec * 1000);
    }
    throw new RuntimeException("timeout: " + monitorId);
}

async function transferToServer(source, target, prefixes, targetPath, action = "overwrite") {
  const transfer = await api("POST", "/api/transfers/manual", {
    sourceDevice: source,
    targetDevice: target,
    targetPath,
    sourcePaths: prefixes,
    sendAllFolder: true,
    transferOptions: { "target-action": action },
  });
  return transfer.monitorId;
}

async function waitTransfer(monitorId, { timeout = 14400, interval = 5 } = {}) {
  const deadline = Date.now() + timeout * 1000;
  while (Date.now() < deadline) {
    const detail = (await api("GET", `/api/transfers/${monitorId}`)) || {};
    if (TERMINAL.has(detail.status)) return detail;
    await new Promise((r) => setTimeout(r, interval * 1000));
  }
  throw new Error(`timeout: ${monitorId}`);
}

const monitorId = await transferToServer("azure-src", "onprem-01", ["export/2026/09"], "/data/incoming");
const detail = await waitTransfer(monitorId);
console.log("completed:", detail.status === STATUS_COMPLETE);

static async Task<string> TransferToServerAsync(InnorixClient client, string source, string target,
    IEnumerable<string> prefixes, string targetPath, string action = "overwrite")
{
    var transfer = await client.ApiObjAsync("POST", "/api/transfers/manual", new JsonObject
    {
        ["sourceDevice"] = source,
        ["targetDevice"] = target,
        ["targetPath"] = targetPath,
        ["sourcePaths"] = J.ArrOfStrings(prefixes),
        ["sendAllFolder"] = true,
        ["transferOptions"] = new JsonObject { ["target-action"] = action },
    });
    return J.Str(transfer, "monitorId");
}

static async Task<JsonObject> WaitTransferAsync(InnorixClient client, string monitorId,
    int timeoutSec = 14400, int intervalSec = 5)
{
    DateTime deadline = DateTime.UtcNow.AddSeconds(timeoutSec);
    while (DateTime.UtcNow < deadline)
    {
        JsonObject detail = await client.ApiObjAsync("GET",
quot;/api/transfers/{monitorId}", null, null);
        int? status = J.IntOrNull(detail, "status");
        if (status != null && InnorixClient.Terminal.Contains(status.Value))
            return detail;
        await Task.Delay(intervalSec * 1000);
    }
    throw new TimeoutException(monitorId);
}

Use an absolute server path Specify targetPath as an absolute path on the target server (Windows: C:/share/incoming, Linux: /data/incoming). Prepare the target folder in advance because the transfer may fail if it does not exist.

Scheduled import If the same prefix must be imported periodically, switch to scheduled automation (see the S3→Linux Automatic Download Recipe) to run at specified times.

If failed files remain, use retry_failed from the Pause and Resume Recipe to retransmit only the failures.

Implementation Result#

With this recipe, Azure Blob files can be delivered to an on-premises server using the following flow.

Azure Blob (azure-src) — specify prefix
   ↓

Create transfer → wait for terminal status
   ↓

On-Premises Server (onprem-01) — save files to specified folder
   ↓

Retry failed files only

Run Azure Blob → server transfers using only device IDs and paths without handling cloud credentials in code, and selectively resend only the remaining failed files.
